Continuous Integration (CI)
- Developers push the code to a code repository often (e.g., GitHub, CodeCommit, Bitbucket…)
- A testing / build server checks the code as soon as it’s pushed (CodeBuild, Jenkins CI…)
- The developer gets feedback about the tests and checks that have passed / failed
- Find bugs early, then fix bugs
- Deliver faster as the code is tested
- Deploy often
- Happier developers, as they’re unblocked
Continuous Delivery (CD)
- Ensures that the software can be released reliably whenever needed
- Ensures deployments happen often and are quick
- Shift away from “one release every 3 months” to ”5 releases a day”
- That usually means automated deployment (e.g., CodeDeploy, Jenkins CD, Spinnaker…)

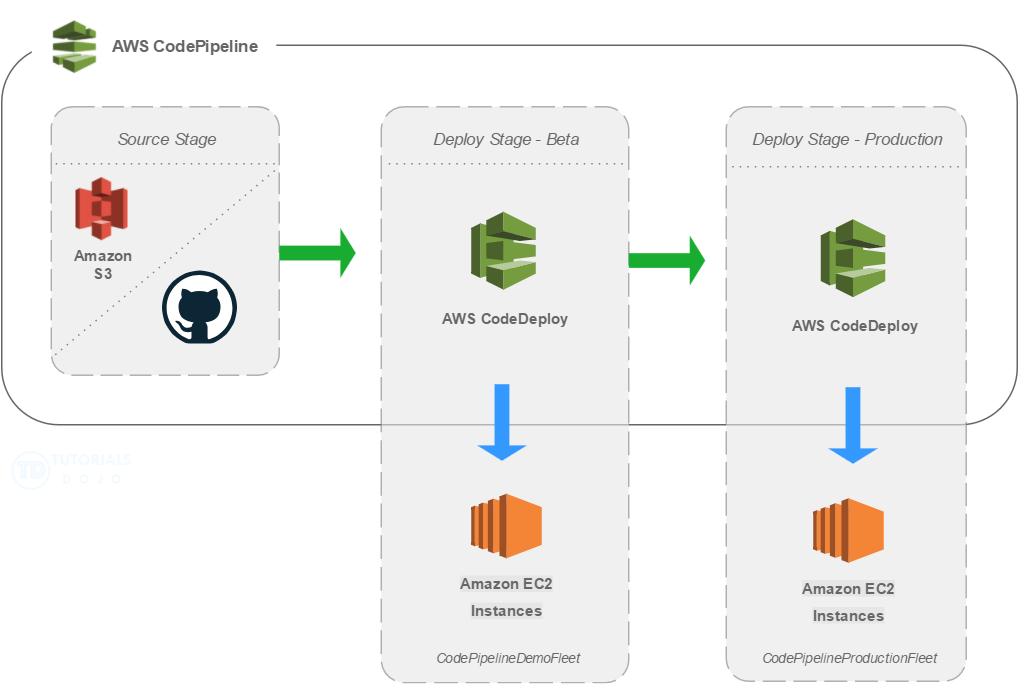

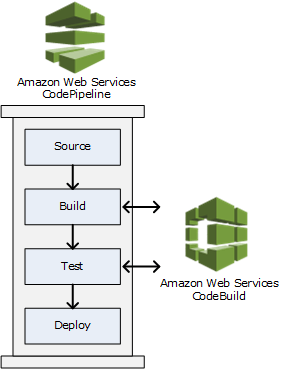

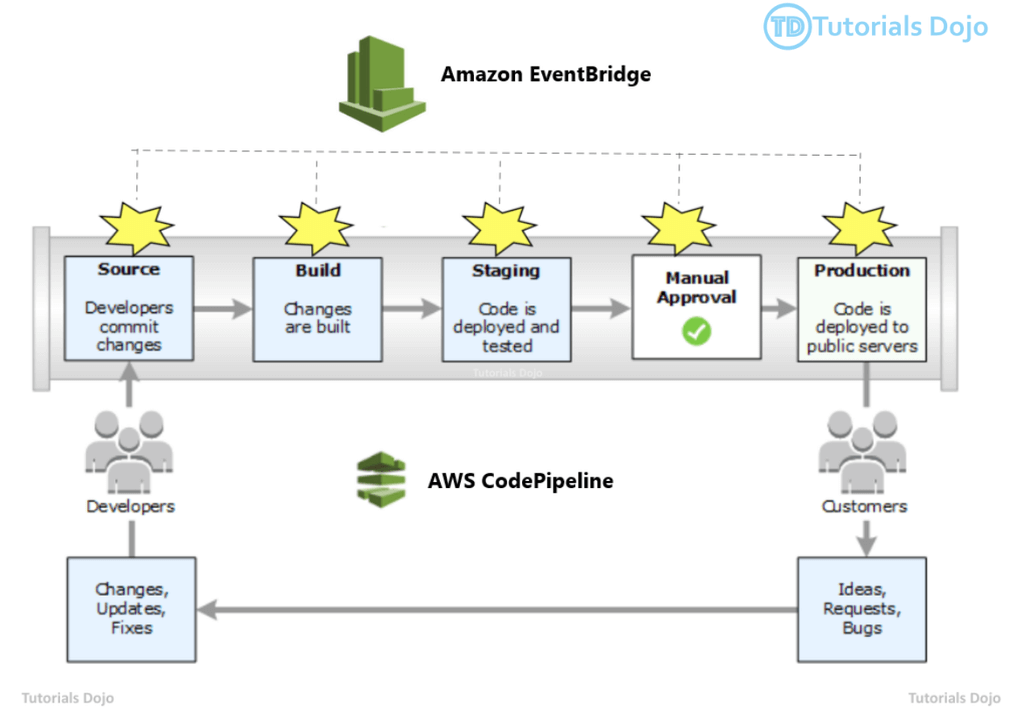

AWS CodePipeline
- [Machine Learning] Automate the entire process of training, testing, and deploying the models
- automating pipeline from code to deployments, as visual workflow
- Source – CodeCommit, ECR, S3, Bitbucket, GitHub
- Build – CodeBuild, Jenkins, CloudBees, TeamCity
- Test – CodeBuild, AWS Device Farm, 3rd party tools…
- Deploy – CodeDeploy, Elastic Beanstalk, CloudFormation, ECS, S3…
- Invoke – Lambda (invokes a Lambda function within a Pipeline), Step Functions (star ts a State Machine within a Pipeline)
- Consists of stages:
- Each stage can have sequential actions and/or parallel actions
- Manual approval can be defined at any stage
- each stage can create artifacts, stored in S3 bucket

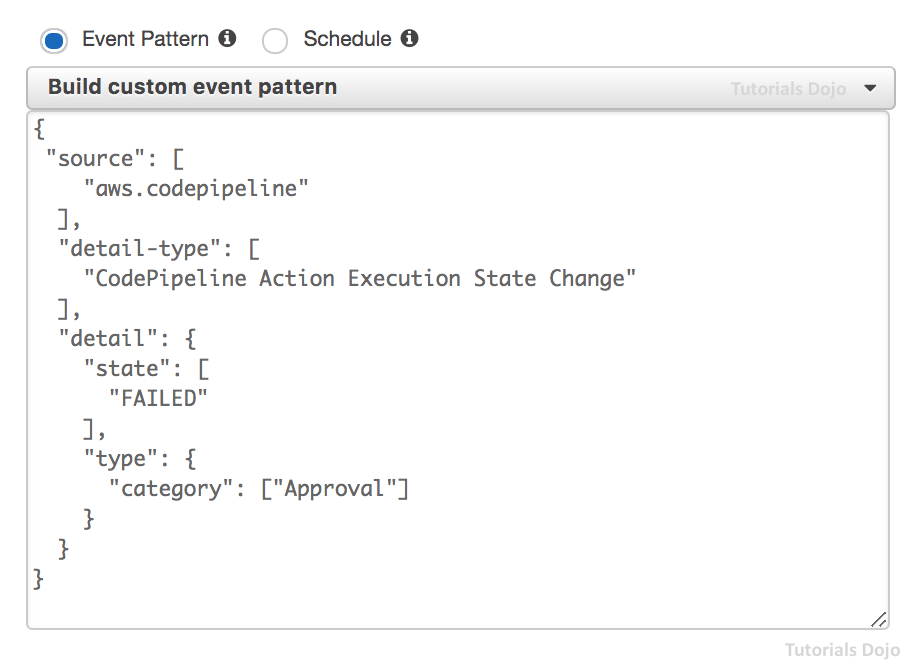

- Use AWS EventBridge for troubleshooting; with CloudTrail for audit AWS API calls
- If pipeline can’t perform an action, make sure the “IAM ServiceRole” attached does have enough IAM permissions (IAM Policy)
- CloudFormation as a Target
- CloudFormation Deploy Action can be used to deploy AWS resources
- Example: deploy Lambda functions using CDK or SAM (alternative to CodeDeploy)
- Works with CloudFormation StackSets to deploy across multiple AWS accounts and AWS Regions
- Configure different settings:
- Stack name, Change Set name, template, parameters, IAM Role, Action Mode…
- CREATE_UPDATE – create or update an existing stack
- DELETE_ONLY – delete a stack if it exists
- Action Modes
- Create or Replace a Change Set, Execute a Change Set
- Create or Update a Stack, Delete a Stack, Replace a Failed Stack
- Template Parameter Overrides
- Specify a JSON object to override parameter values
- Retrives the parameter value from CodePipeline Input Artifact
- All parameter names must be present in the template
- Static – use template configuration file (recommended)
- Dynamic – use parameter overrides

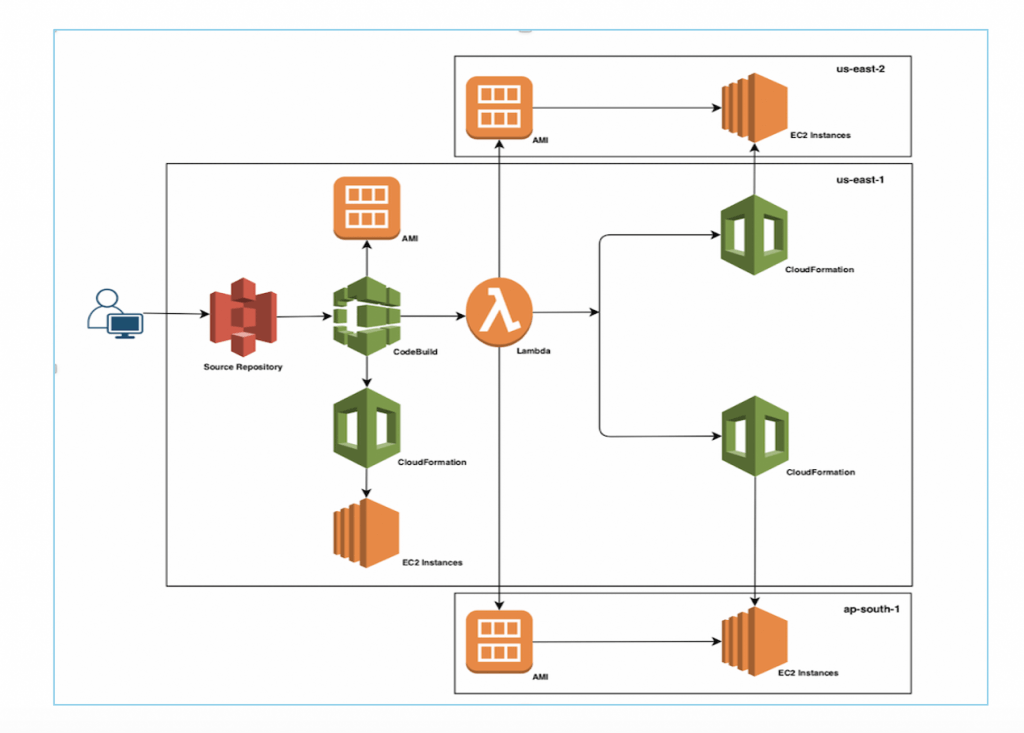

- Multi Region
- Actions in your pipeline can be in different regions
- Example: deploy a Lambda function through CloudFormation into multiple regions
- S3 Artifact Stores must be defined in each region where you have actions
- CodePipeline must have read/write access into every artifact buckets
- If you use the console default artifact buckets are configured, else you must create them
- CodePipeline handles the copying of input artifacts from one AWS Region
to the other Regions when performing cross-region actions- In your cross-region actions, only reference the name of the input artifacts
- Actions in your pipeline can be in different regions
| Owner | Type of action | Provider | Valid number of input artifacts | Valid number of output artifacts |
|---|---|---|---|---|
AWS | Source | S3 | 0 | 1 |
AWS | Source | CodeCommit | 0 | 1 |
AWS | Source | ECR | 0 | 1 |
ThirdParty | Source | CodeStarSourceConnection | 0 | 1 |
AWS | Build | CodeBuild | 1 to 5 | 0 to 5 |
AWS | Test | CodeBuild | 1 to 5 | 0 to 5 |
AWS | Test | DeviceFarm | 1 | 0 |
AWS | Approval | ThirdParty | 0 | 0 |
AWS | Deploy | S3 | 1 | 0 |
AWS | Deploy | CloudFormation | 0 to 10 | 0 to 1 |
AWS | Deploy | CodeDeploy | 1 | 0 |
AWS | Deploy | ElasticBeanstalk | 1 | 0 |
AWS | Deploy | OpsWorks | 1 | 0 |
AWS | Deploy | ECS | 1 | 0 |
AWS | Deploy | ServiceCatalog | 1 | 0 |
AWS | Invoke | Lambda | 0 to 5 | 0 to 5 |
ThirdParty | Deploy | AlexaSkillsKit | 1 to 2 | 0 |
Custom | Build | Jenkins | 0 to 5 | 0 to 5 |
Custom | Test | Jenkins | 0 to 5 | 0 to 5 |
Custom | Any supported category | As specified in the custom action | 0 to 5 | 0 to 5 |
AWS CodeBuild
- A fully managed continuous integration (CI) service
- Compile the code, execute unit tests, and build the necessary artifacts
- Continuous scaling (no servers to manage or provision – no build queue)
- Alternative to other build tools (e.g., Jenkins)
- Charged per minute for compute resources (time it takes to complete the builds)
- Leverages Docker under the hood for reproducible builds
- Use prepackaged Docker images or create your own custom Docker image
- Security:
- Integration with KMS for encryption of build artifacts
- IAM for CodeBuild permissions, and VPC for network security
- AWS CloudTrail for API calls logging
- CodeBuild Service Role allows CodeBuild to access AWS resources on your behalf (assign the required permissions)
- Use cases:
- Download code from CodeCommit repositor y
- Fetch parameters from SSM Parameter Store
- Upload build ar tifacts to S3 bucket
- Fetch secrets from Secrets Manager
- Store logs in CloudWatch Logs
- Use cases:
- In-transit and at-rest data encryption (cache, logs…)
- Source – CodeCommit, S3, Bitbucket, GitHub
- Build instructions: on buildspec.yml, stored at the root of codes; or insert manually in Console
- env
- variables – plaintext variables
- parameter-store – variables stored in SSM Parameter Store
- secrets-manager – variables stored in AWS Secrets Manager
- phases
- install – install dependencies you may need for your build
- pre_build – final commands to execute before build
- Build – actual build commands
- post_build – finishing touches (e.g., zip output)
- artifacts – what to upload to S3 (encrypted with KMS)
- cache – files to cache (usually dependencies) to S3 for future build speedup
- env
- Output logs can be stored in Amazon S3 & CloudWatch Logs
- Use CloudWatch Metrics to monitor build statistics
- Use EventBridge to detect failed builds and trigger notifications
- Use CloudWatch Alarms to notify if you need “thresholds” for failures
- Build Projects can be defined within CodePipeline or CodeBuild
- You can run CodeBuild locally on your desktop (after installing Docker)
- Inside VPC
- By default, your CodeBuild containers are launched outside your VPC
- It cannot access resources in a VPC
- You can specify a VPC configuration:
- VPC ID
- Subnet IDs
- Security Group IDs
- Then your build can access resources in your VPC (e.g., RDS, ElastiCache, EC2, ALB…)
- Use cases: integration tests, data query, internal load balancers…
- By default, your CodeBuild containers are launched outside your VPC
- Environment Variables
- Default Environment Variables
- Defined and provided by AWS
- AWS_DEFAULT_REGION, CODEBUILD_BUILD_ARN, CODEBUILD_BUILD_ID, CODEBUILD_BUILD_IMAGE…
- Custom Environment Variables
- Static – defined at build time (override using start-build API call)
- Dynamic – using SSM Parameter Store and Secrets Manager
- Default Environment Variables
- Build Badges
- Suppor ted for CodeCommit, GitHub, and BitBucket
- Note: Badges are available at the branch level
- Validate Pull Requests
- Validate proposed code changes in PRs before they get merged
- Ensure high level of code quality and avoid code conflicts
- Test Reports
- Contains details about tests that are run during builds
- Unit tests, configuration tests, functional tests
- Create your test cases with any test framework that can create repor t files in the following format:
- JUnit XML, NUnit XML, NUnit3 XML
- Cucumber JSON, TestNG XML, Visual Studio TRX
- Create a test report and add a Report Group name in buildspec.yml file with information about your tests
AWS CodeDeploy
- [Machine Learning] Automatically release new versions of the models to various environments while avoiding downtime and handling the complexity of updating them
- Deploy new applications versions
- EC2 Instances, On-premises servers
- need CodeDeployAgent on the target instance, with S3 access permit
- In-place Deployment (compatible with existing ASG)
- AllAtOnce: most downtime
- HalfAtATime: reduced capacity by 50%
- OneAtATime: slowest, lowest availability impact (health-check on every new instance deployed)
- Custom: define your %
- or Blue/Green Deployment (new ASG created) (also as one deployment attempt)
- must be using an ELB
- Lambda functions (integrated into SAM)
- create a new Lambda function Version; ie, only Blue-Green Deployment supported
- Specify the Version info in the appspec.yml file
- Name (required) – the name of the Lambda function to deploy
- Alias (required) – the name of the alias to the Lambda function
- CurrentVersion (required) – the version of the Lambda function traffic currently points to
- TargetVersion (required) – the version of the Lambda function traffic is shifted to
- Specify the Version info in the appspec.yml file
- traffic would be redirected by
- Linear: grow traffic every N minutes until 100%
- LambdaLinear10PercentEvery3Minutes
- LambdaLinear10PercentEvery10Minutes
- Canary (two deployment attempts only): try X percent then 100%
- LambdaCanary10Percent5Minutes
- LambdaCanary10Percent30Minutes
- AllAtOnce (one deployment attempt): immediate
- Linear: grow traffic every N minutes until 100%

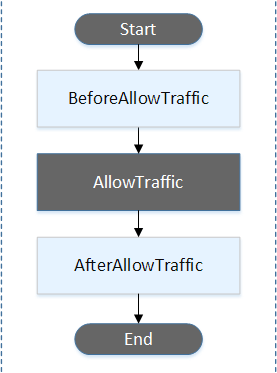

- For Lambda Deployment, the hook would be “a Lambda function”
- BeforeAllowTraffic and AfterAllowTraffic hooks can be used to check the health of the Lambda function
- create a new Lambda function Version; ie, only Blue-Green Deployment supported
- ECS Services
- with only Blue/Green deployment
- needs Application Load Balancer (ALB) to control traffic
- Linear: grow traffic every N minutes until 100%
- Canary (two deployment attempts only): try X percent then 100%
- LambdaCanary10Percent5Minutes
- LambdaCanary10Percent30Minutes
- AllAtOnce (one deployment attempt): immediate
- not Elastic Beanstalk
- The ECS Task Definition and new Container Images must be already created
- A reference to the new ECS Task Revision (TaskDefinition) and load balancer
- information (LoadBalancerInfo) are specified in the appspec.yml file
- Can define a second ELB Test Listener to test the Replacement (Green) version before traffic is rebalanced

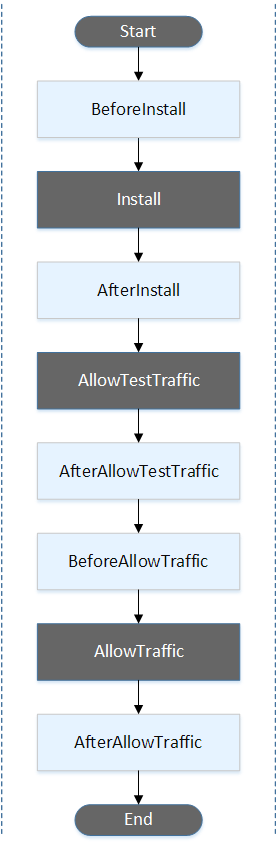

- For ECS Deployment, the hook would be “a Lambda function”
- For example, AfterAllowTestTraffic – run AWS Lambda function after the test ELB Listener serves traffic to the Replacement ECS Task Set
- EC2 Instances, On-premises servers
- Use appspec.yml to define actions (manage each application deployment as a series of lifecycle event hooks in CodeDeploy)
- For “In-place Deployments”
- Use EC2 Tags or ASG to identify instances you want to deploy to
- With a Load Balancer: traffic is stopped before instance is updated, and started again after the instance is updated
- For “Blue/Green Deployments”
- Manually mode: provision EC2 Instances for Blue and Green and identify by Tags
- Automatic mode: new ASG is provisioned by CodeDeploy (settings are copied)
- Using a Load Balancer is necessary for Blue/Green
- BlueInstanceTerminationOption – specify whether to terminate the original (Blue) EC2 instances after a successfully Blue-Green deployment
- Action Terminate – Specify Wait Time, default 1 hour, max 2 days
- Action Keep Alive – Instances are kept running but deregistered from ELB and deployment group

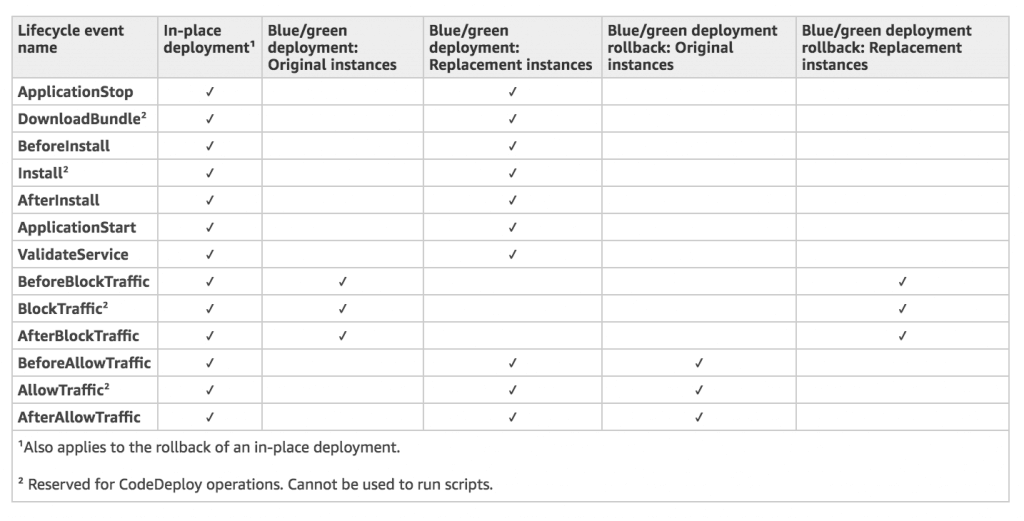

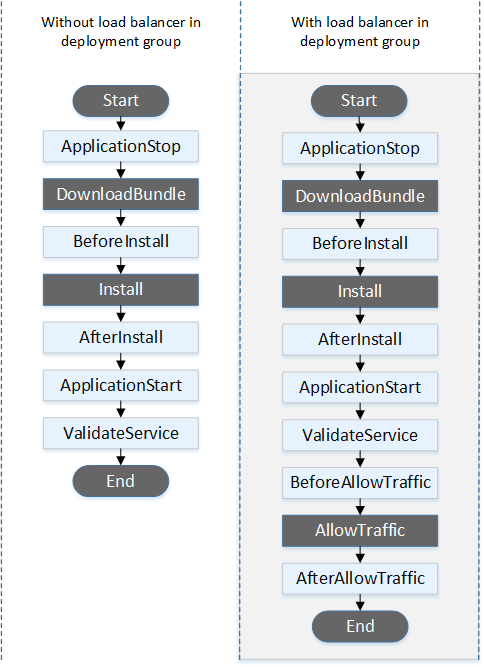

- Deployment Hooks Examples
- BeforeInstall – used for preinstall tasks, such as decrypting files and creating a backup of the current version
- AfterInstall – used for tasks such as configuring your application or changing file permissions
- ApplicationStart – used to start services that stopped during ApplicationStop
- ValidateService – used to verify the deployment was completed successfully
- BeforeAllowTraffic – run tasks on EC2 instances before registered to the load balancer
- Example: perform health checks on the application and fail the deployment if the health
checks are not successful
- Example: perform health checks on the application and fail the deployment if the health
- Deployment Configurations
- Specifies the number of instances that must remain available at any time during the deployment
- Use Pre-defined Deployment Configurations
- CodeDeployDefault.AllAtOnce – deploy to as many instances as possible at once
- CodeDeployDefault.HalfAtATime – deploy to up to half of the instances at a time
- CodeDeployDefault.OneAtATime – deploy to only one instance at a time
- Can create your own custom Deployment Configurations
- Triggers: Publish Deployment or EC2 instance events to SNS topic
- Examples: DeploymentSuccess, DeploymentFailure, InstanceFailure
- Rollback = redeploy a previously the last known good revision as a new deployment (with new deployment ID), not a restored version
- Deployments can be rolled back:
- Automatically – rollback when a deployment fails or rollback when a CloudWatch Alarm thresholds are met
- Manually
- Disable Rollbacks — do not perform rollbacks for this deployment
- Deployments can be rolled back:
- TroubleShooting
- CASE ONE – Deployment Error: “InvalidSignatureException – Signature expired: [time] is now earlier than [time]”
- For CodeDeploy to perform its operations, it requires accurate time references
- If the date and time on your EC2 instance are not set correctly, they might not match the signature date of your deployment request, which CodeDeploy rejects
- CASE TWO – When the Deployment or all Lifecycle Events are skipped (EC2/On-Premises), you get one of the following errors:
- “The overall deployment failed because too many individual instances failed deployment”
- “Too few healthy instances are available for deployment”
- “Some instances in your deployment group are experiencing problems. (Error code: HEALTH_CONSTRAINTS)”
- Reasons:
- CodeDeploy Agent might not be installed, running, or it can’t reach CodeDeploy
- CodeDeploy Service Role or IAM instance profile might not have the required permissions
- You’re using an HTTP Proxy, configure CodeDeploy Agent with :proxy_uri: parameter
- Date and Time mismatch between CodeDeploy and Agent
- CASE THREE – If a CodeDeploy deployment to ASG is underway and a scale-out event occurs, the new instances will be updated with the application revision that was most recently deployed (not the application revision that is currently being deployed)
- ASG will have EC2 instances hosting different versions of the application
- By default, CodeDeploy automatically starts a follow-on deployment to update any outdated EC2 instances
- CASE FOUR – failed AllowTraffic lifecycle event in Blue/Green Deployments with no error reported in the Deployment Logs
- Reason: incorrectly configured health checks in ELB
- Resolution: review and correct any errors in ELB health checks configuration
- CASE ONE – Deployment Error: “InvalidSignatureException – Signature expired: [time] is now earlier than [time]”
AWS CodeArtifact
- store, publish, and share software packages (aka code dependencies)
- Software packages depend on each other to be built (also called code dependencies), and new ones are created
- Storing and retrieving these dependencies is called artifact management
- Works with common dependency management tools such as Maven, Gradle, npm, yarn, twine, pip, and NuGet
- Developers and CodeBuild can then retrieve dependencies straight from CodeArtifact
- CodeArtifact seamlessly integrates with Amazon EventBridge, a service that automates actions responding to specific events, including any activity within a CodeArtifact repository. This integration allows you to establish rules that dictate the actions to be taken when a particular event occurs.
- Resource Policy
- Can be used to authorize another account to access CodeArtifact
- A given principal can either read all the packages in a repository or none of them
- Upstream Repositories
- A CodeArtifact repository can have other CodeArtifact repositories as Upstream Repositories
- So it works as a proxy, to keep the “depedencies” cached
- Allows a package manager client to access the packages that are contained in more than one repository using a single repository endpoint
- Up to 10 Upstream Repositories
- Only one external connection
- A CodeArtifact repository can have other CodeArtifact repositories as Upstream Repositories
- External Connection
- An External Connection is a connection between a CodeArtifact Repository and an external/public repository (e.g., Maven, npm, PyPI, NuGet…)
- A repository has a maximum of 1 external connection
- Create many repositories for many external connections
- Example – Connect to npmjs.com
- Configure one CodeArtifact Repository in your domain with an external connection to npmjs.com
- Configure all the other repositories with an upstream to it
- Packages fetched from npmjs.com are cached in the Upstream
- Example – Connect to npmjs.com
- Retention
- If a requested package version is found in an Upstream Repository, a reference to it is retained and is always available from the Downstream Repository
- The retained package version is not affected by changes to the Upstream Repository (deleting it, updating the package…)
- Intermediate repositories do not keep the package
- Example – Fetching Package from npmjs.com
- Package Manager connected to Repository A requests the package Lodash v4.17.20
- The package version is not present in any of the three repositories
- The package version will be fetched from npmjs.com
- When Lodash 4.17.20 is fetched, it will be retained in:
- Repository A – the most-downstream repository
- Repository C – has the external connection to npmjs.com
- The Package version will not be retained in Repository B as that is an intermediate Repository
- Example – Fetching Package from npmjs.com
- Domains
- Deduplicated Storage – asset only needs to be stored once in a domain, even if it’s available in many repositories (only pay once for storage)
- Fast Copying – only metadata record are updated when you pull packages from an Upstream CodeArtifact Repository into a Downstream
- Easy Sharing Across Repositories and Teams – all the assets and metadata in a domain are encrypted with a single AWS KMS Key
- Apply Policy Across Multiple Repositories – domain administrator can apply policy across the domain such as:
- Restricting which accounts have access to repositories in the domain
- Who can configure connections to public repositories to use as sources of packages
AWS CodeGuru
- a developer tool that provides intelligent recommendations to improve the quality of your codebase and for identifying an application’s most “expensive” lines of code in terms of resource intensiveness, CPU performance, and code efficiency
- using Machine Learning for automated code reviews and application performance recommends
- CodeGuru Reviewer – identify critical issues, security vulnerabilities, and hard-to-find bugs
- automated code reviews for static code analysis (development)
- Example: common coding best practices, resource leaks, security detection, input validation
- Uses Machine Learning and automated reasoning
- CodeGuru Reviewer Secrets Detector
- Uses ML to identify hardcoded secrets embedded in your code (e.g., passwords, API keys, credentials, SSH keys…)
- Besides scanning code, it scans configuration and documentation files
- Suggests remediation to automatically protect your secrets with Secrets Manager
- CodeGuru Profiler
- visibility/recommendations about application performance during runtime (production)
- Example: identify if your application is consuming excessive CPU capacity on a logging routine
- Features:
- Identify and remove code inefficiencies
- Improve application performance (e.g., reduce CPU utilization)
- Decrease compute costs
- Provides heap summary (identify which objects using up memory)
- Anomaly Detection
- Support applications running on AWS or on-premise
- Minimal overhead on application
- Integrate and apply CodeGuru Profiler to Lambda functions either using:
- Function Decorator @with_lambda_profiler
- Add codeguru_profiler_agent dependency to your Lambda function .zip file oruse Lambda Layers
- Enable Profiling in the Lambda function configuration
- Function Decorator @with_lambda_profiler
- CodeGuru Reviewer – identify critical issues, security vulnerabilities, and hard-to-find bugs
- Supports Java and Python
- CodeGuru Agent
- MaxStackDepth – the max depth of chain on method call
- MemoryUsageLimitPercent
- MinimumTimeForReportingInMilliseconds
- ReportingIntervalInMilliseconds
- SamplingIntervalInMilliseconds
EC2 Image Builder
- Used to automate the creation of Virtual Machines or container images
- => Automate the creation, maintain, validate and test EC2 AMIs
- Can be run on a schedule (weekly, whenever packages are updated, etc…)
- Free service (only pay for the underlying resources)
- Can publish AMI to multiple regions and multiple accounts
- Use AWS Resource Access Manager (RAM) to share Images, Recipes, and Components across AWS accounts or through AWS Organization
| Parameters | AWS EC2 Image Builder | Packer |
|---|---|---|
| Tool Type | Fully managed service by AWS | Open-source tool by HashiCorp |
| Supported Platforms | Primarily for AWS (EC2 AMIs) with integration into AWS services | Multi-cloud (AWS, Azure, GCP), on-premise, and container platforms |
| Customization | Limited to AWS-managed pipelines, some customization possible | Fully customizable, supports a wide range of provisioners like Ansible, Chef, Shell |
| Ease of Use | User-friendly, integrated with AWS services, no manual server setup | Requires manual configuration, more complex setup but highly flexible |
| Cost | No additional cost beyond the AWS resources used | Free (open-source), but costs may arise from cloud usage during image builds |
| Automation | Fully automated AMI creation and distribution pipelines | Can be automated but requires more manual setup and scripting for pipelines |
| Testing & Validation | Integrated with AWS services like CloudWatch and Systems Manager for validation | Requires custom scripting or external tools for validation and testing |
| Version Control | Provides version control for image pipelines within the AWS ecosystem | Supports versioning of templates but requires manual version control of scripts |
| Multi-environment Support | Primarily focused on AWS environments | Supports multiple cloud environments, containers, and virtualization platforms |
| Parallel Builds | Limited to AWS resources; no built-in multi-cloud capability | Supports parallel image creation for multiple environments simultaneously |
| Security & Compliance | Built-in security updates and compliance checks via AWS services | Requires manual setup of security updates and compliance integration |
| Integration with IaC | Native integration with AWS services like CloudFormation | Integrates with Terraform, making it versatile across platforms |
